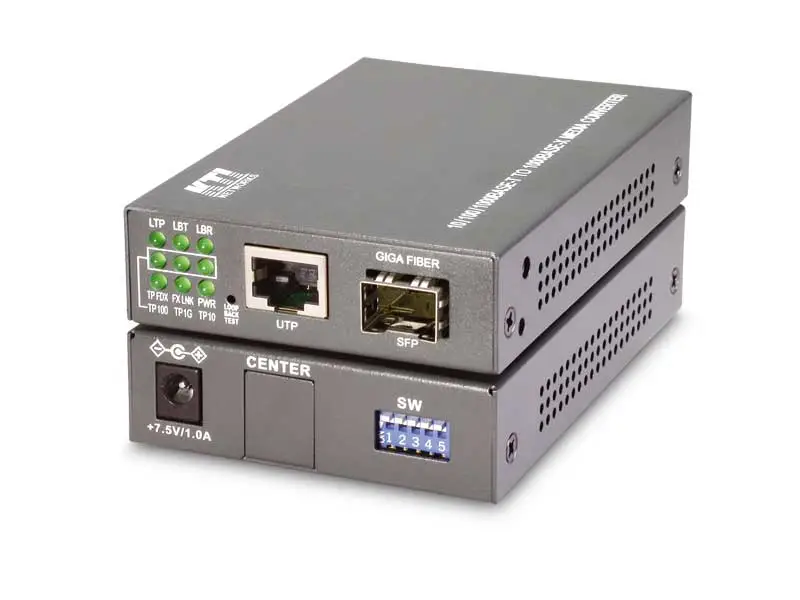

KGC-310M - The Ideal Converter Solution for Single-/ Multimode and BiDi Applications

Whether individually or in a rack, the manageable KTI series KGC-310M offers flexibility when converting from copper to fiber optics. The converters support data transfer speeds of 10/100/1000Base-T on the copper port and 100/1000Mbps on the fiber optic port. With this series, KTI also offers the option of bidirectional transmission of fiber optic signals. Two-way communication on a single fiber optic cable allows you to easily expand your network capacity—without additional infrastructure.

VLAN, LFPT, Jumbo Frame: easy configuration via web or SNMP management

With its configuration options, the manageable converter adapts perfectly to your needs. The KGC-310M can be used individually or as a unit with up to 16 devices per rack chassis. KTI offers suitable converter racks for this purpose: KC-1300 series, KCR-4MC series. Device management and power supply can be centralized. Depending on the model, it is also possible to set up a redundant power supply.

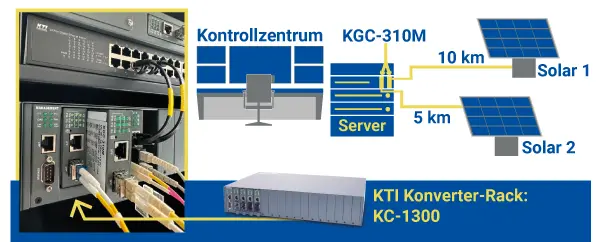

The KTI series is suitable, for example, for integrating remote company buildings via fiber optic connections. The devices are also used in the field of renewable energies, for example when individual solar fields are brought together and controlled at a central point.

KGC-310M Series: Product Features

• 1x 10/100/1000Mbps RJ45 port
• 1x 100/1000Mbps Dual Speed SFP port
• Operating Temperature: -40°C to 70°C
• Storage Temperature: -40°C to 85°C
• Relative humidity: 5 to 95%, non-condensing
• Power supply: +5 to +12VDC (not included)
• Power consumption: max. 3.5W
• Dimensions: 72.5x108x23mm

This KTI converter performs its tasks reliably and quickly: An LED display keeps you informed of the current port status at all times. At the same time, the KGC-310M is economical in consumption.
